Presentation
Ossa TR 125i Factory 2013
Informatión and images: Ossa Factory
26th april 2013

    OSSA presents TR125i Factory special edition 26th april 2013

Click on the images to enlarge

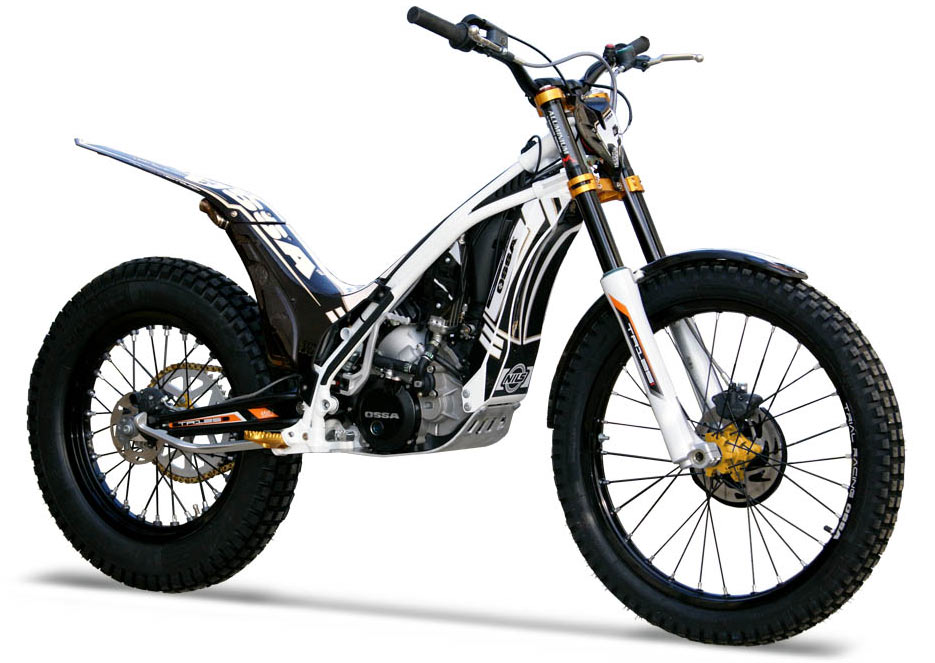

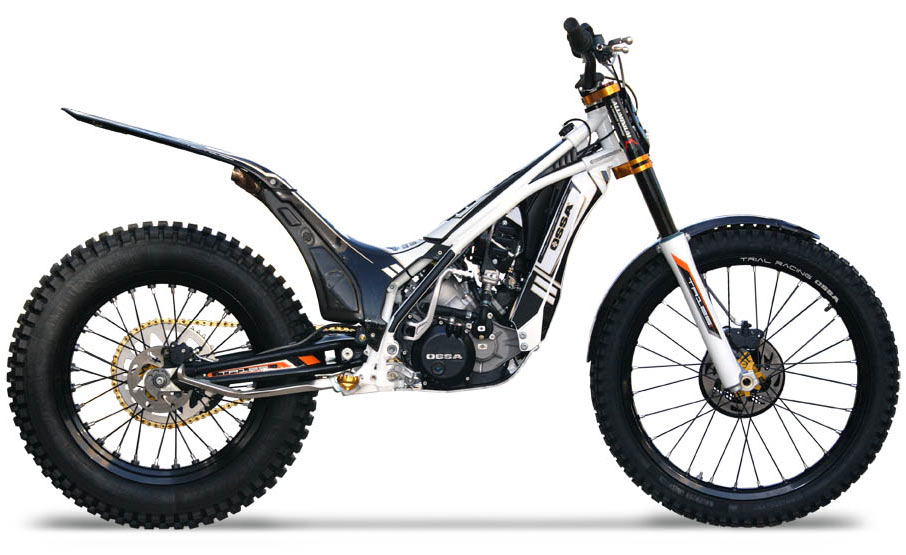

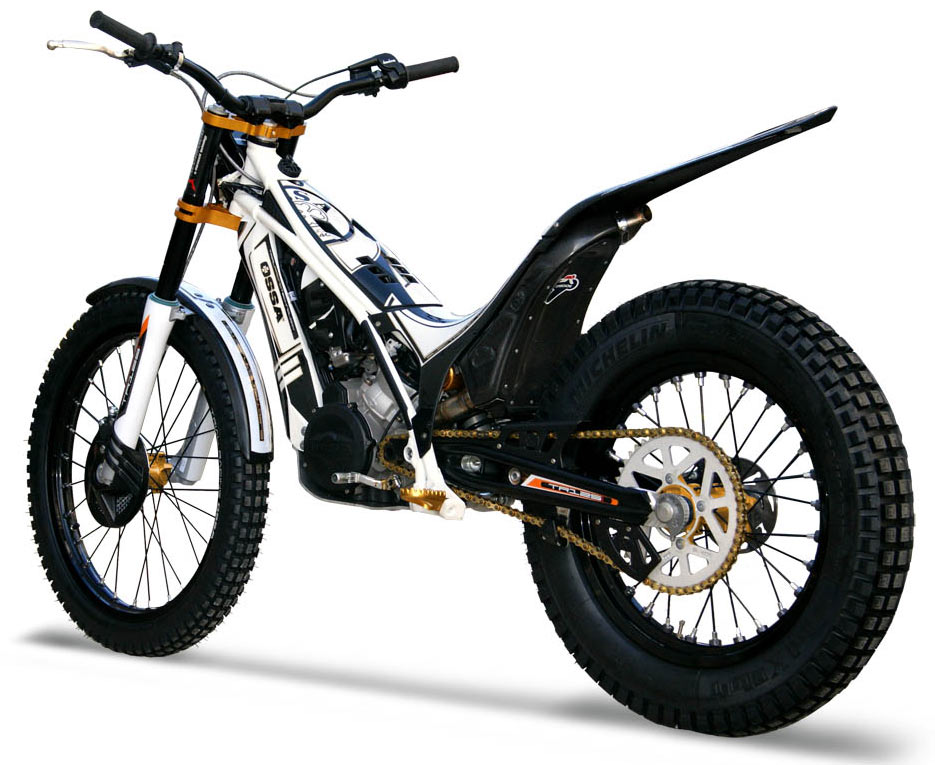

The brand Ossa just announced the launch of its new Factory 125, which includes many new features over the standard model which was introduced in last December.

The Factory 125 is the top OSSA model in the category. With a completely new cylinder and Termignoni exhaust, the Factory is more powerful throughout the RPM range. Furthermore, it inherits all the improvements of his sister, the Factory R 300. Aesthetically, the Factory 125 is distinguished by an exclusive image based on white and gold.

Changes from the TR125i:

-Cylinder entirely new with revised distribution.
-Termignoni exhaust.
-New settings for the Marzocchi fork.
-New Öhlins damper settings.
-New injection map.
-Frame in white.
-New graphic design.
-Clamps, footrests and wheel hubs OSSA -gold anodized.
-New wiring.
-Other minor improvements.

Téchnical data

ENGINE:
Displacement 124,9 cc
Type Two-stroke single cylinder inverted admission direct reed crankcase
Water Cooling system
Bore x Stroke 54x54,5 mm
Fuel Supply EFI Kokusan Batery-less System
Ignition Kokusan CDI digital magnetic flywheel
Clutch Hydraulic control
Gear box 6 speed
Primary Transmission with gears, secondary with chain
Engine lubrication Mix 0.9% 100% synthetic oil
Gear and clutch lubrication 350 cc. Extreme Gear type oil 75 W

FRAME:

Type Tubular profile CR-Mo steel with pipe and forged aluminum lower
Front suspension Fork with aluminum bars, 40 mm diameter Marzocchi adjustable compression and rebound
Rear suspension Variable progressive system with shock absorber Ohlins TTX adjustable compression and rebound
Front brake Disc diameter 185 mm 4-piston caliper
Rear brake Disc diameter 150 mm 2-piston caliper
Front wheel 28 spokes with 2.75 x21 tires
Rear wheel 28 spokes with 4.00 x18 tubeless tire
Engine protector Built in AA7075 T6
Kick-start Forged aluminum
Gear and brake pedal Forged aluminum with flexible tip

WEIGHT AND DIMENSIONS:
Wheelbase 1.328 mm
Seat height 655 mm
Ground Clearance 340 mm
Tank capacity 2,6 litros
Dry weight 66 Kg
